MODEL:HVU-80 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/Over voltage/High temperature
Waterproof grade: IP67
Working Frequency: 65KHz
Suitable for LED lighten and moving sign applications.
1 year warranty

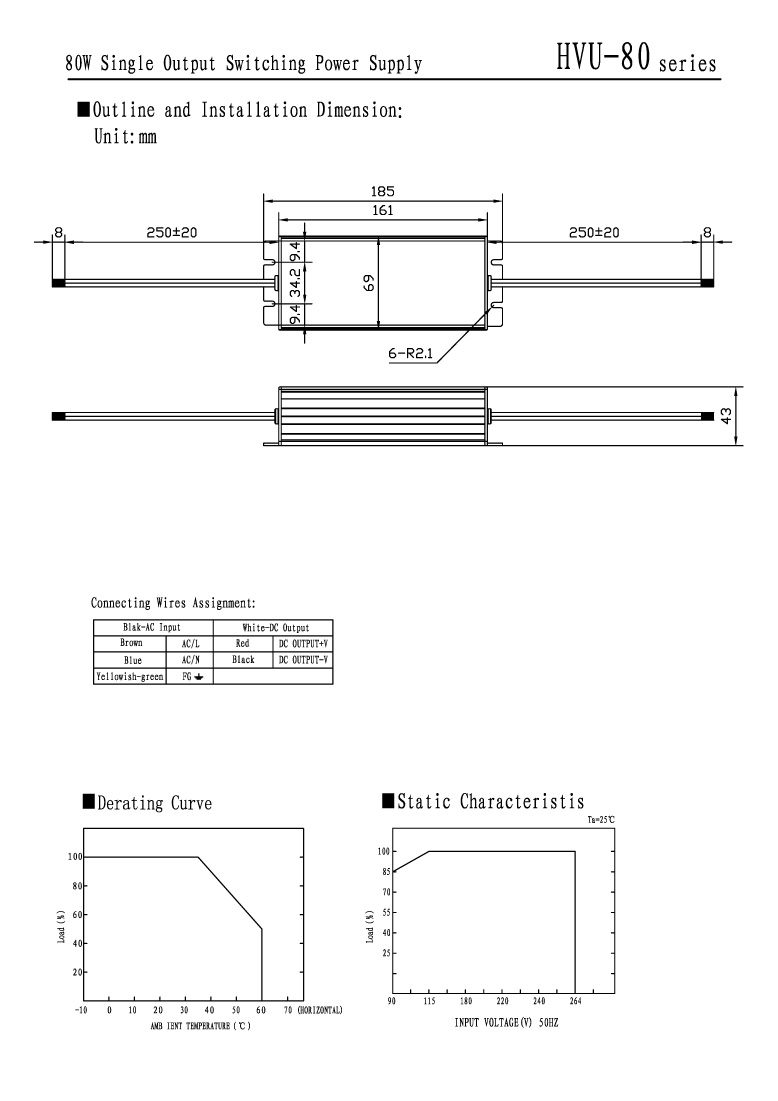

Dimensions: 185*69*43mm £¨L*W*H£©

Shell code£ºH057

MODEL

 HVU-80-12 HVU-80-24 HVU-80-36 HVU-80-48
OUTPUT

DC VOLTAGE

 12V 24V 36V 48V

VOLTAGE  TOLERANCE

 ¡À5% ¡À5% ¡À5% ¡À5%

RATED CURRENT

 6.6A 3.3A 2.5A 1.7A

CURRENT RANGE

 0-6.6A 0-3.3A 0-2.5A 0-1.7A

RATED POWER

 79.2W 79.2W 79.2W 81.6W

RIPPLE & NOISE

 80mVp-p 100mVp-p 100mVp-p 150mVp-p

SETUP,RISE, TIME

800ms,30ms,24ms/230VAC
INPUT

VOLTAGE RANGE

90¡«264 VAC 47¡«63Hz£»126¡«373VDC

AC CURRENT

1A/230VAC 2A/115VAC

EFFICIENCY

 80% 82% 84% 84%

INRUSH CURRENT

COLD START35A/230VAC

LEAKAGE CURRENT

<1mA/240VAC
PROTECTION

OVER LOAD

 115%~135%
Protection: Hiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE 15~17V 30~32V 42~44V 55.2-64.8V
Protection£ºHiccup mode,recovers automatically after fault condition is removed
HIGH TEMPERATURE

¡Ý90¡æ¡À10%(JK1)
Protection£ºcut off the output,recovers automatically after fault condition is removed
ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle£¬period for 60 min£¬each along X.Y.Z axes
SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD

Safety Standard

EN61347-1 EN61347-2-13 EN62384 IP67

EMC Standard

EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11
OTHERS

Weight

185*69*43£¨L*W*H£©

Packing

0.9kg/20pcs/19kg/0.97CUFT
NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf
parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
