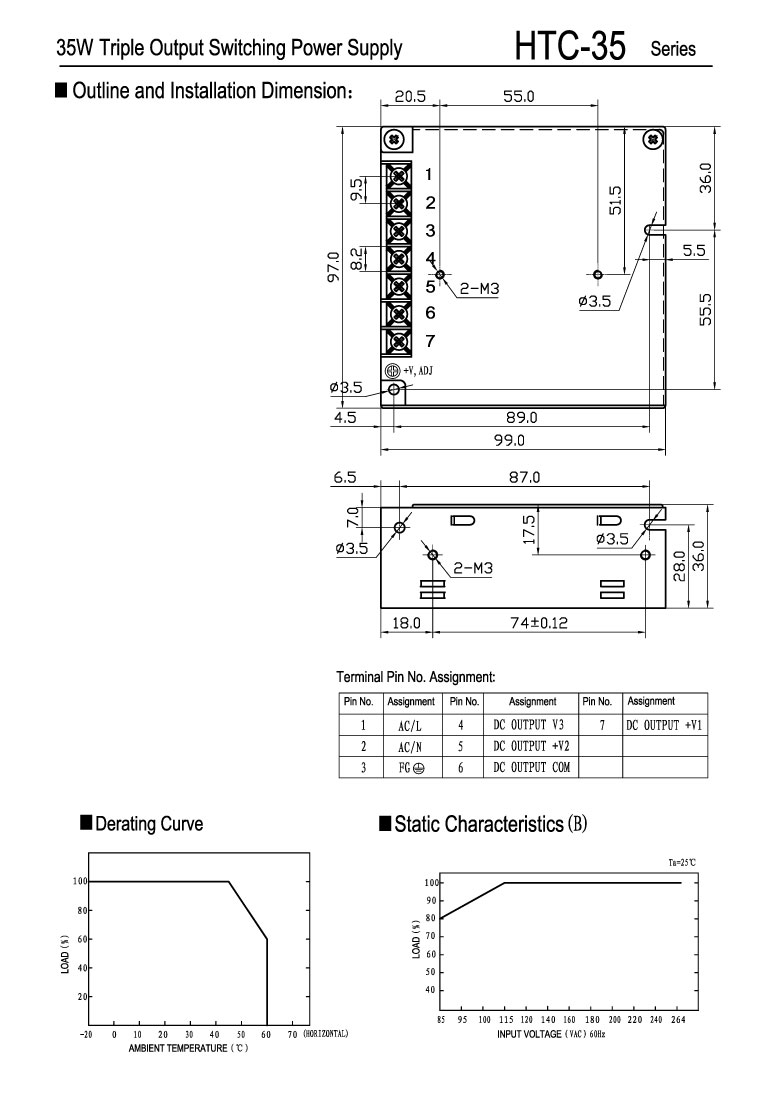

Features: Universal AC input/ full range Protection: Short circuit/Over load/Over voltage Cooling by free air convection 100% full load burn-in test 1 year warranty Dimensions: 99*97*36mm(L*W*H )
110%¡«150% Protection: Hiccup mode£¬recovers automatically after fault condition is removed
Over voltage
CH1£º5.75-6.75 Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-20¡æ¡«+60¡æ; 20%¡«90 %RH (Refer to output load derating curve)
Storage Temp., Humidity
-40¡æ¡«+85¡æ£»10%¡«95 %RH
Vibration
10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
STANDARD
Safety Standard
Design refer to UL60950-1,CB(IEC60950-1)
EMC Standard
Design refer to EN55022 CLASSB EN61000-3-2,-3 EN61000-4-2,3,4,5,6,8,11,ENV50204,EN55024,EN61000-6-1
OTHERS
Weight
0.36Kg
Packing
45pcs/16.8Kg/0.99CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.Each OUTPUT can reach to maxium current, but the total load can not exceed the rated power.
5.The power supply is considered as a component inside the equipment, the final equipment must be confirmed it meets EMC directives.
