MODEL:HSM-15 Single Output Switching Power Supply
Features:
Small size, high reliability
PROTECTION£º Short circuit/Over load
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
1 year warranty

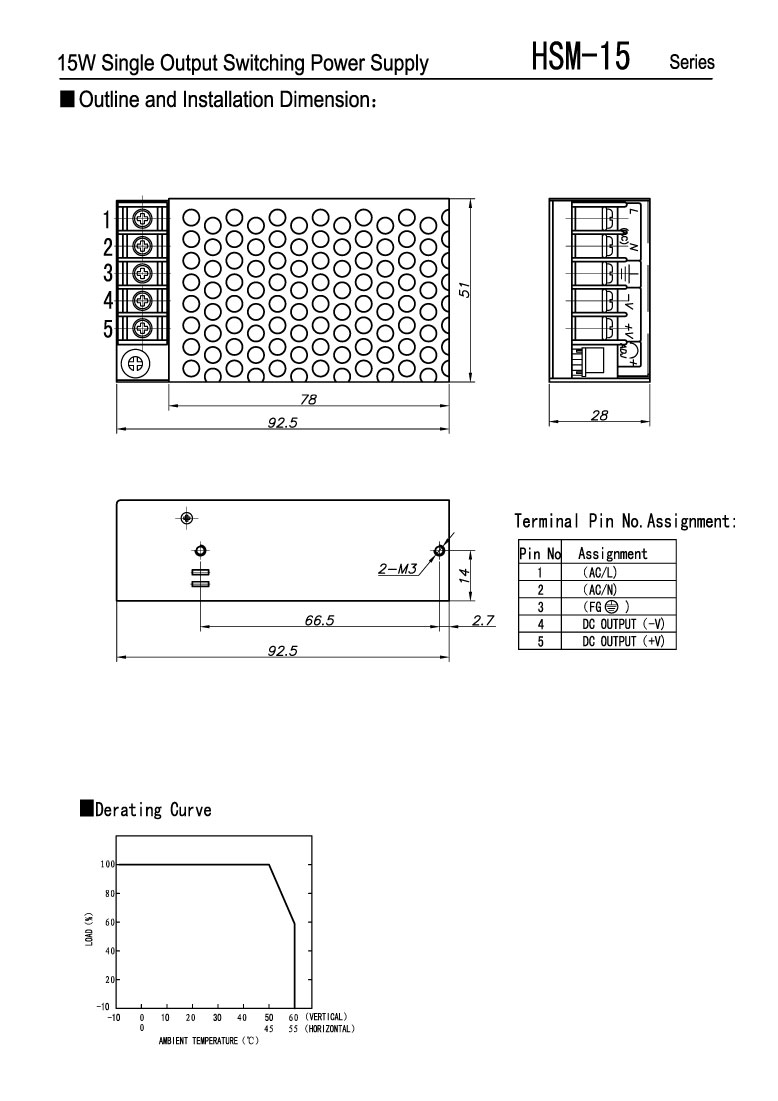

Dimensions: 92.5¡Á51¡Á28mm(L*W*H )

casing No. : H039

MODEL

HSM-15-5

HSM-15-12

HSM-15-24

OUTPUT

DC Voltage

5V

12V

24V

Voltage Tolerance

¡À1%

¡À1%

¡À1%

Rated Current

3A

1.3A

0.7A

Current Range

0-3A

0-1.3A

0-0.7A

Rated Power

15.0W

15.6W

16.8W

Ripple & Noise

80mVp-p

100mVp-p

150mVp-p

DC Adjustment Range

-5%¡«+10%

¡À10%

¡À10%

Setup, Rise, Hold Time

200ms,100ms,30ms at full load

INPUT

Voltage Range

176¡«264VAC 47~63Hz£¬248~370VDC

AC Current

0.25A/ 230 V

Efficiency

75%

78%

82%

Inrush Current

Cold start 35A/230VAC

Leakage Current

£¼0.5 mA/240VAC

PROTECTION

Over Load

110%¡«180%

Protection:current limiing, recovers automatically

ENVIRONMENT

Working Temp., Humidity

-10¡æ¡«+60¡æ£»20%¡«90 %RH

Storage Temp., Humidity

-20¡æ¡«+85¡æ£»10%¡«95 %RH

Vibration

10¡«500Hz£¬2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:1.5KVAC  I/P-O/P:1.5KVAC  O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012

EMC Standard

Design refer to EN55022£¬EN55024£¬EN61000

OTHERS

Weight

0.13Kg

Packing

108pcs/14.8Kg/0.99CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.
