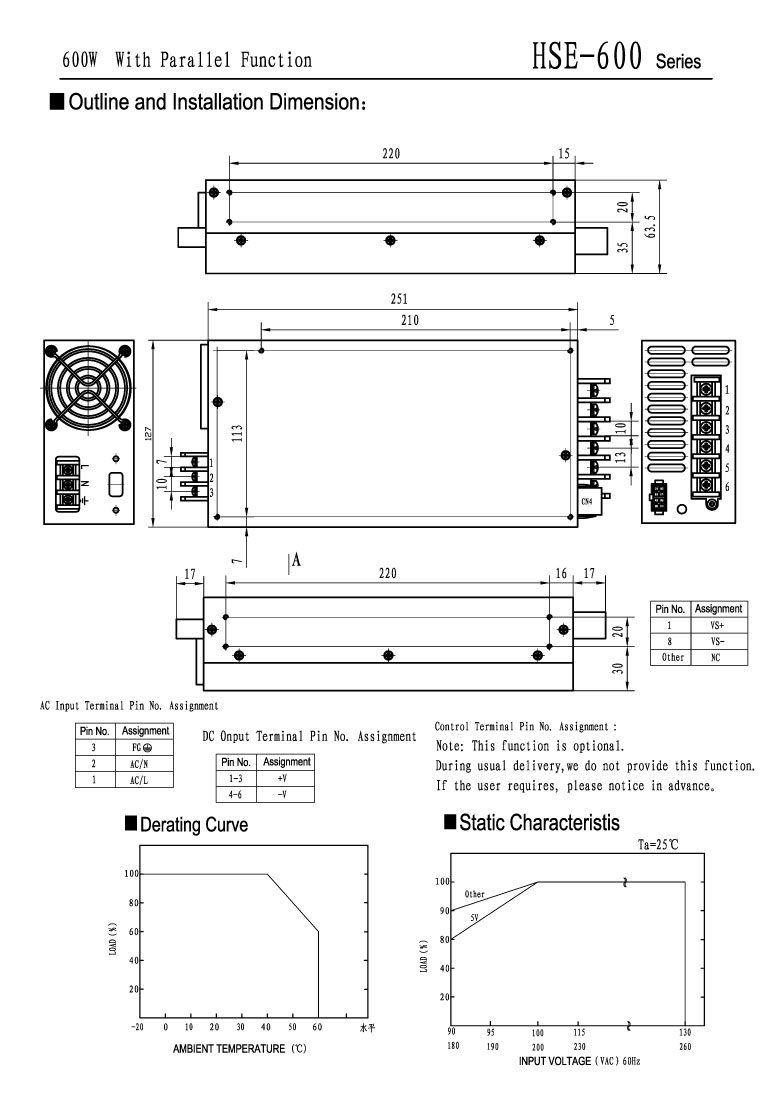

MODEL:HSE-600 Single Output Switching Power Supply |
|||||||||
| |||||||||
|
MODEL |
HSE-600-5 |
HSE-600-12 |
HSE-600 -15 |
HSE-600 -24 |
HSE-600 -27 |
HSE-600 -48 | |||
|
OUTPUT |
DC Voltage |
5V |
12V |
15V |
24V |
27V |
48V | ||
|
Rated Current |
100A |
50A |
40A |
25A |
22.2A |
12.5A | |||
|
Current Range |
0-100A |
0-50A |
0-40A |
0-25A |
0-22.2A |
0-12.5A | |||
|
Voltage Tolerance |
¡À2% |
¡À1.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% |
¡À1.0% | |||
|
Line Regulation |
¡À0.5% |
¡À0.5% |
¡À0.5% |
¡À0.5% |
¡À0.5% |
¡À0.5% | |||
|
Load Stability |
¡À2% |
¡À0.5% |
¡À0.5% |
¡À0.5% |
¡À0.5% |
¡À0.5% | |||
|
Rated Power |
500W |
600W |
600W |
600W |
599.4W |
600W | |||
|
Ripple & Noise |
240mVp-p |
240mVp-p |
240mVp-p |
240mVp-p |
240mVp-p |
240mVp-p | |||
|
DC Adjustment Range |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5~ 16.5V |
21.6-26.4V |
24-30V |
42 ~ 52.8V | |||
|
Setup, Rise Time |
1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load | ||||||||
|
Hold Time |
20ms/230VAC 16ms/115VAC at full load | ||||||||
|
INPUT |
Voltage Range |
90 ~ 130VAC /180~260selected by switch, 248 ~ 373VDC | |||||||
|
Frequency |
47~63Hz | ||||||||
|
Efficiency |
78% |
83% |
84% |
87% |
87% |
88% | |||
|
AC Current |
12A/115VAC 7.5A/230VAC | ||||||||
|
Inrush Current |
Cold start 40A/230VAC | ||||||||
|
Leakage Current |
<2mA / 240VAC | ||||||||
|
PROTECTION |
Over Load |
105 ~ 125% | |||||||
|
Protection: Shut down o/p voltage, re-power on to recover | |||||||||
|
Over voltage |
5.75~6.75V |
13.8~16.2V |
17.25~20.25V |
27.6~32.4V |
31~36.5V |
55.2~64.8V | |||
|
Protection: Shut down o/p voltage, re-power on to recover | |||||||||
|
Over temperature |
85¡æ¡À5¡æ(TSW1) | ||||||||
|
Shut down input voltage, set up after temperature goes down | |||||||||
|
ENVIRONMENT |
Working Temp., Humidity |
-20~+60¡æ, 20 ~ 90% RH | |||||||
|
Storage Temp., Humidity |
-40 ~ +85¡æ , 10 ~ 95% RH | ||||||||
|
Vibration |
10 ~ 500Hz, 2G 10min./ 1cycle, period for 60min, each along X, Y, Z axes | ||||||||
|
SAFETY |
Withstand Voltage |
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC | |||||||
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC | ||||||||
|
STANDARD |
Safety Standard |
Design refer to UL60950-1 | |||||||
|
EMC Standard |
Design refer to EN55022 CLASSA | ||||||||
|
OTHERS |
Weight |
1.8Kg | |||||||
|
Packing |
6pcs/12.5kg/1.14CUFT | ||||||||
|
FUNCTION |
Voltage Sensing |
This function is optional, without this function at normal delivery, if user need, please notice when place the order. | |||||||
|
NOTE |
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. | ||||||||
