MODEL:HSCN-1500 Single Output Switching Power Supply

Features:
 High reliability, low ripple
AC input voltage AC200~260V
Protections : Short circuit/ Over load/Over voltage/ Over   temperature
Built-in remote ON-OFF control and remote sense function
With parallel function
Can adjust from 40%~100% output voltage by external   control 2-5V
Forced air cooling by built-in DC fan
1 year warranty

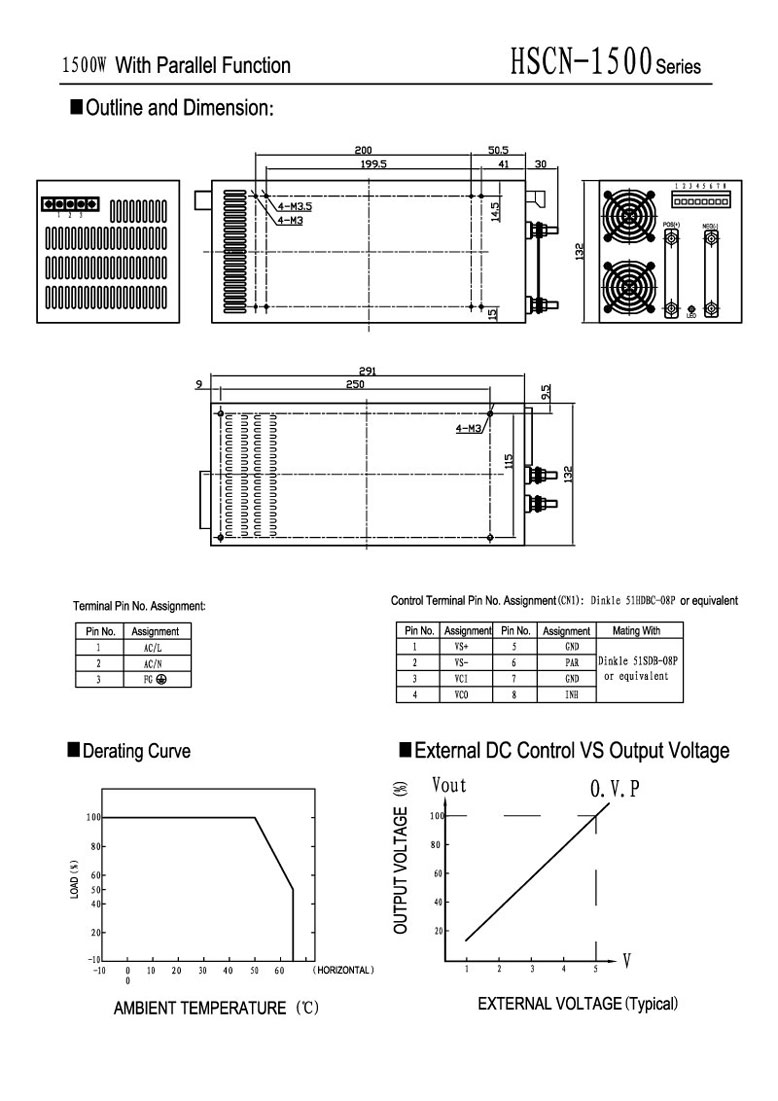

Dimensions: 291*132*132mmL*W*H



casing No. : H032
MODEL
HSCN-1500-12
HSCN-1500-15
HSCN-1500-24
HSCN-1500-48

OUTPUT

DC Voltage

12V

15V

24V

48V

Voltage Tolerance

1%

1%

1%

1%

Rated Current

125A

100A

62.5A

32A

Current Range

0-125A

0-100A

0-62.5A

0-32A

Rated Power

1500W

1500W

1500W

1536W

Ripple & Noise

120mVp-p

150mVp-p

240mVp-p

480mVp-p

DC Adjustment Range

5%; Can adjust from 40%~100% output voltage by external control 2-5V

Setup, Rise, Hold Time

800ms, 50ms, 16ms at full load

INPUT

Voltage Range

200260 VAC4763 Hz290370VDC

AC Current

12A/ 230 VAC

Efficiency

83%

84%

85%

87%

Inrush Current

120A/230V

Leakage Current

3.5 mA/240VAC

PROTECTION

Over Load

110%135%

Protection: Protection:Current limiting, delay shut down o/p voltage, re-power on to recover

Over Voltage

110%~135%

Protection type: Shut down o/p voltage, re-power on to recover

Over Temp

TSW1(Power transistor) When temp. >100 , shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-10桫+65棬20%90 %RH

Storage Temp., Humidity

-20桫+85棬10%95 %RH

Vibration

10200Hz2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P, I/P-FG:1500VAC

Isolation Resistance

I/P-O/P, I/P-FG, >100M Ohms / 500VDC

STANDARD

Safety Standard

Design refer to UL1950,CSA22.2,IEC60950

EMC Standard

Design refer to FCC Part 15 Class A

OTHERS

Weight

4.5Kg;

Packing

4pcs/20kg/CARTON

Special Function

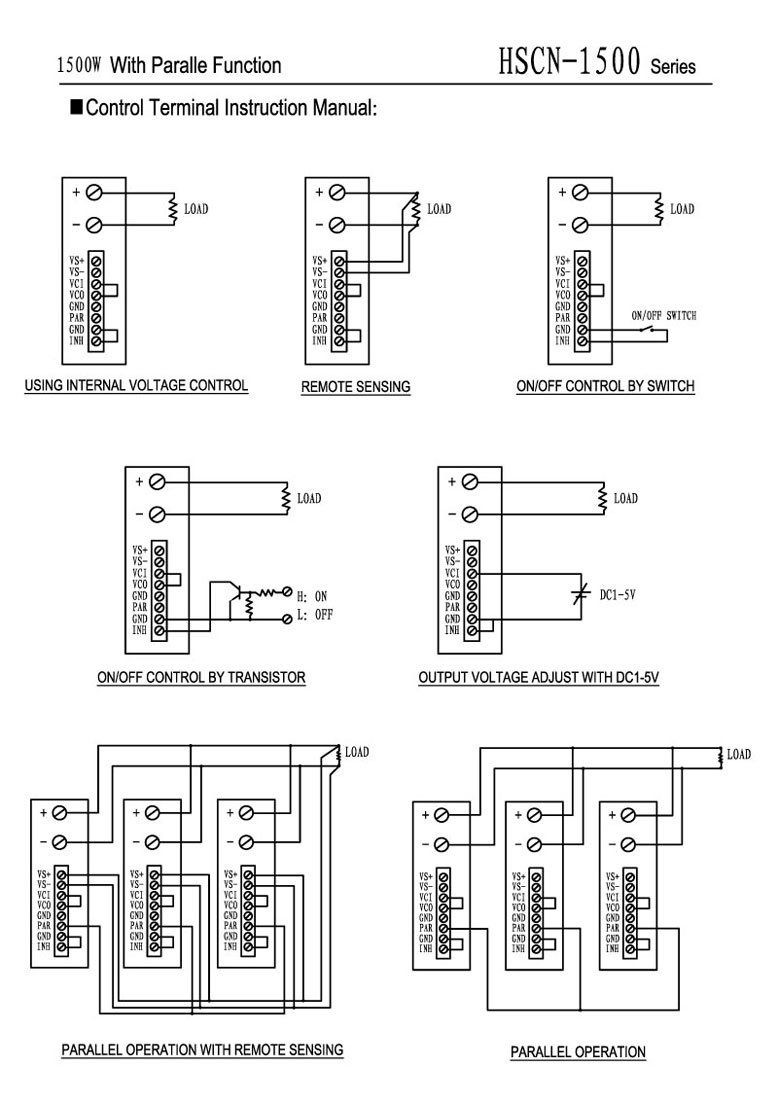

DC Voltage adj. Remote Control. Remote sensing. Parallel operation.

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 & 47 parallel capacitor.

3.Tolerance: includes set up tolerance, line regulation and load regulation.

4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
