MODEL:HSC-100 Single Output Switching Power Supply
Features:
¡¤Universal AC input/full range
¡¤Protections£ºShort circuit/Over load/Over voltage
¡¤Cooling By free air convection
¡¤LED indicator for power on
¡¤100% full load burn-in test
¡¤All using 105¡æ long life electrolytic capacitors
¡¤Withstand 300VAC surge input for 5 second
¡¤High operating temperature up to 70¡æ
¡¤Withstand 5G
¡¤vibration test
¡¤High efficiency,long life and high reliability
¡¤1 year warranty

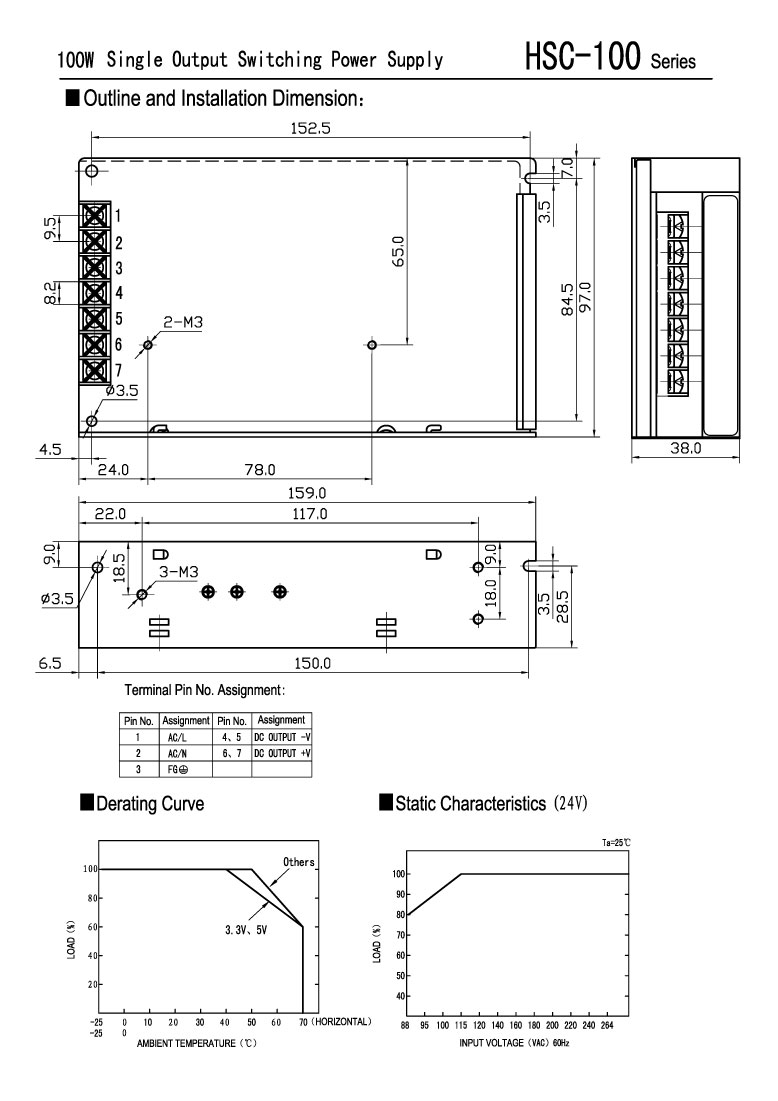

¡¤Dimension: 159*97*38mm (L*W*H)
casing No. : H003
MODEL
HSC-100-3.3
HSC-100-5
HSC-100-12
HSC-100-15
HSC-100-24
HSC-100-48
OUTPUT
DC Voltage
3.3V
5V
12V
15V
24V
48V
Rated Current
20A
16A
8.5A
7A
4.5A
2.3A
Current Range
0~20A
0~16A
0-8.5A
0-7A
0-4.5A
0-2.3A
Voltage Tolerance
¡À3.0%
¡À2.0%
¡À1.0%
¡À1.0%
¡À1.0%
¡À1.0%
Line Regulation
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%
Load Stability
¡À2.5%
¡À1.0%
¡À0.5%
¡À0.5%
¡À0.5%
¡À0.5%
Rated Power
66W
80W
102W
105W
108W
110.4W
Ripple & Noise
80mVp-p
80mVp-p
120mVp-p
120mVp-p
120mVp-p
200mVp-p
DC Adjustment Range
3.2V~3.5V
4.75~5.5V
11.4 ~ 13.2V
14.25~ 16.5V
22.8-26.4V
45.6 ~ 52.8V
Setup, Rise Time
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
Protection: Hiccup mode, recovers automatically after fault condition is removed
Over voltage
3.8~4.45V
5.75~6.75V
13.8~16.2V
17.25~20.25V
27.6~32.4V
55.2~64.8V
Protection: Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
Working Temp., Humidity
-25~+70¡æ, 20 ~ 90% RH
Storage Temp., Humidity
-40 ~ +85¡æ , 10 ~ 95% RH
Vibration
10 ~ 500Hz, 5G 10min./ 1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to UL60950-1,TUV EN60950-1
EMC Standard
Design refer to EN55022 CLASS B£¬EN61000-3-2£¬-3£»EN61000-4-2,3,4,5,6,8,11;ENV50204,EN61000-6-2(EN50082-2)
OTHERS
Weight
0.6Kg
Packing
30pcs/18.5Kg/0.99CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25¡æ of ambient temperature.
2.
Tolerance: includes set up tolerance, line regulation and load regulation
3.Line Regulation is measured from low line to high line at rate load.
4.Load Stability is measured from 0% to 100% rated load.
5.
Ripple & noise are measured at 20MHz of bandwidth by using a 12¡åtwisted pair-wire terminated with a 0.1¦Ì & 47¦Ì parallel capacitor.
6.The power supply is considered a component which will be installed into a final equipment. The final equipment must
be re-confirmed that it still meets EMC directives.
7.
Length of set up time is measured at cold first start, turning on-off the power supply very quickly may lead to increase of the set up time.
