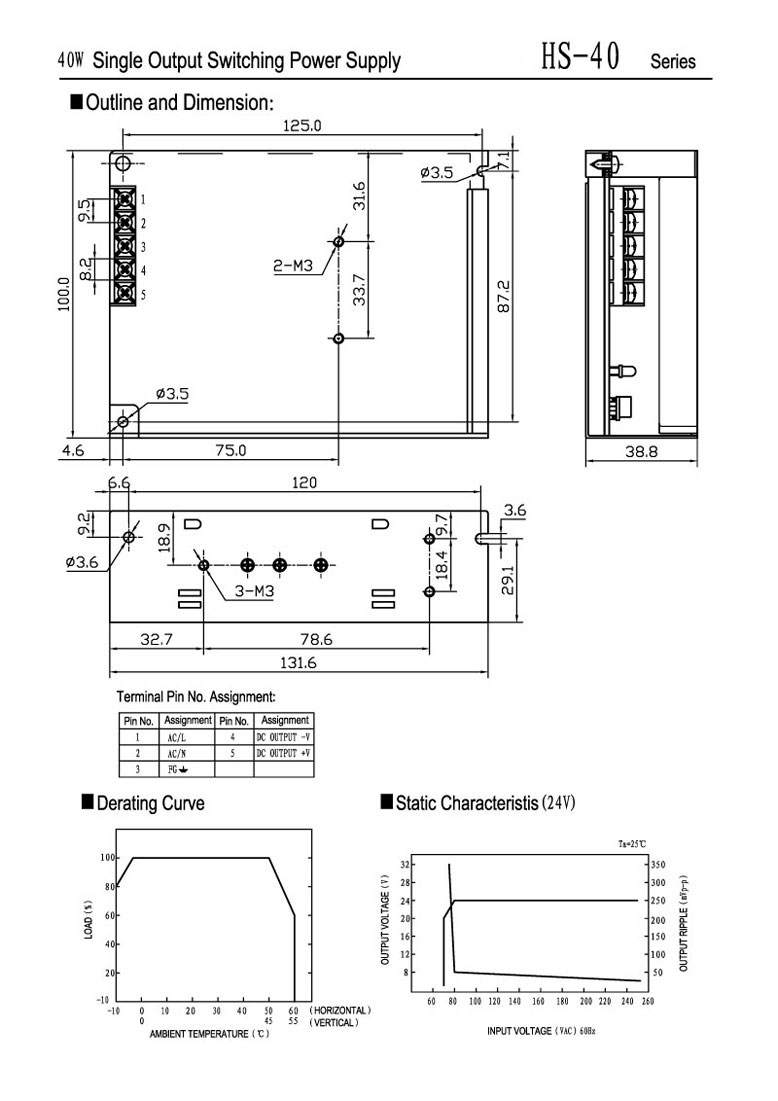

MODEL:HS-40 Single Output Switching Power Supply

MODEL

HS-40-5

HS-40-12

HS-40-15

HS-40-24

OUTPUT

DC Voltage

5V

12V

15V

24V

Voltage Tolerance

±2%

±1%

±1%

±1%

Rated Current

8A

3.5A

2.8A

1.8A

Current Range

0-8A

0-3.5A

0-2.8A

0-1.8A

Rated Power

40W

42W

42W

43W

Ripple & Noise

75mVp-p

100mVp-p

100mVp-p

100mVp-p

DC Adjustment Range

+10,-5%

±10%

±10%

±10%

Setup, Rise, Hold Time

800ms,50ms,15ms/115VAC 300ms,50ms,60ms/230VAC at full load

INPUT

Voltage Range

85～264 VAC 47～63 Hz；120～370VDC

AC Current

1.2A/115 V 0.6A/ 230 V

Efficiency

72%/115VAC

76%/115VAC

76%/115VAC

78%/115VAC

Inrush Current

Cold start 30A/115VAC 60A/230VAC

Leakage Current

＜1 mA/240VAC

PROTECTION

Over Load

110%～160%

Protection: Shut down o/p voltage, re-power on to recover

Over Voltage

115%～135%

Protection: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity

-10℃～+60℃；20%～90 %RH

Storage Temp., Humidity

-20℃～+85℃；10%～95 %RH

Vibration

10～500Hz，2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY

Withstand Voltage

I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Design refer to UL1012, UL1950，TUV EN60950

EMC Standard

Design refer to EN55022，EN61000-3-2，-3，EN61000-4-2，3，4，5，ENV50204，EN55024

OTHERS

Weight

0.44Kg

Packing

45pcs/20.3Kg/1.22CUFT

NOTE

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
