MODEL:HCH-30 Single Output Waterproof Power Supply

Features:
High efficiency, High reliability, Low cost
Protections: Short circuit/Over load/High temperature
Constant current model
Small size, light weight, high efficiency
Waterproof grade: IP67
Suitable for LED lighten and moving sign applications.
1 year warranty

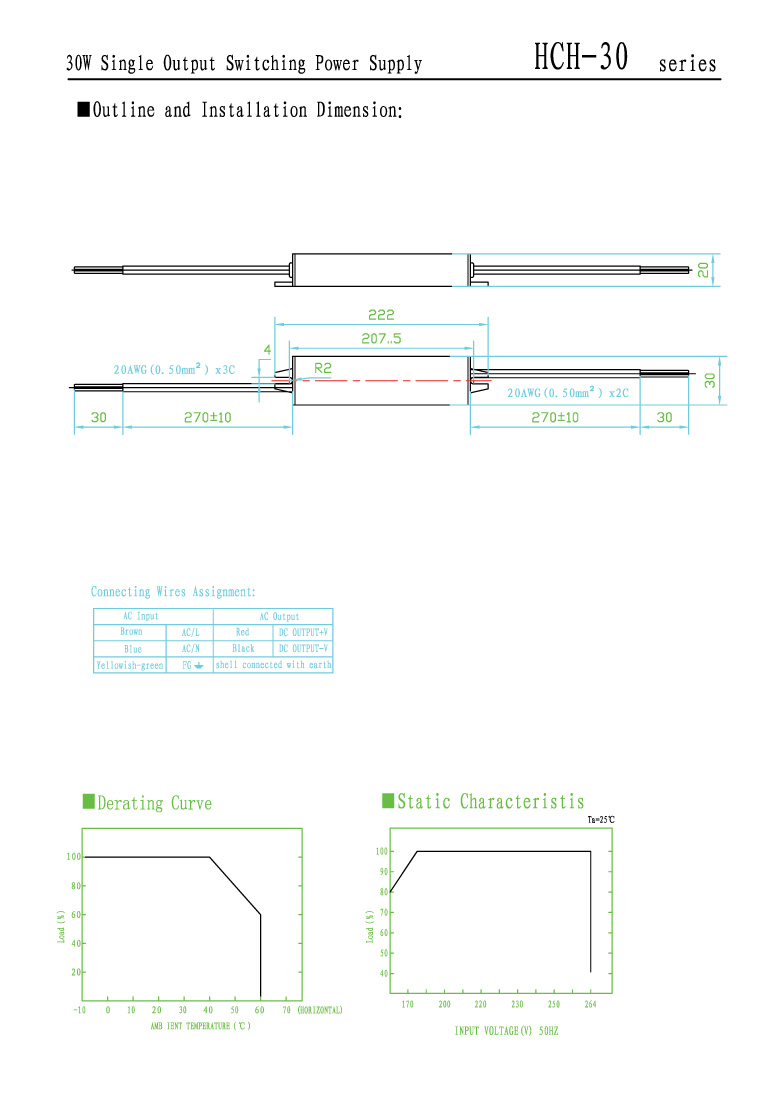

Dimensions: 222*30*20mm L*W*H



MODEL

HCH-30-1400

HCH-30-1050

HCH-30-700

Output

Rated current
1400mA
1050mA
700mA
DC voltage range
12~21V
16~28V
25~42V
Rated power
29.4W
29.4W
29.4W
Ripple & Noise
200mVp-p
200mVp-p
200mVp-p
Voltage Accuracy 5%
Load Regulation 2%

Setup, Rise, Hold time

600ms,30ms,24ms/220VAC

Input

Voltage Range

170260VAC 47-63Hz238370VDC

AC Current

0.7A/230VAC

Efficiency

84%

Inrush Current

Cold start current 45A/230VAC

Leakage Current

<0.5mA/240VAC

Protection

Current limiting 5% rated output current
Protection type: rated current limiting
High temperature

RTH80, temperature protection start

Protectionoutput shutdown, recovers automatically after temperature become normal

Environment

Working Temp.& humidity

-20桫+50; 20%90 %RH (refer to the load derating curves)

Storage Temp.& Humidity

-30桫+80棻10%95 %RH non-condensing

Vibration

10500Hz, 2G 10min./1 cycle,period for 60min, each along X, Y, Z axes

Safety

Withstand Voltage

I/P-O/P:1.5KVAC

Isolation Resistance

I/P-O/P:100M Ohms / 500VDC

Standards

Safety Standards, IP Grade

UL1310Class2 Ip67

EMC Standards

EN55022CLASSB

Others

Dimension

222*30*20(L*W*H)

Packing

0.25kg/80pcs/21.5kg/0.033 CBM

Remark

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of mbient
temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1 &47 parallel capacitor.
3.Tolerance: includes set up tolerance, voltage regulation and current regulation
